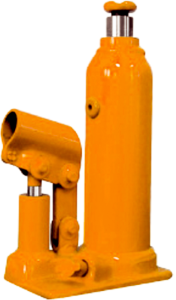

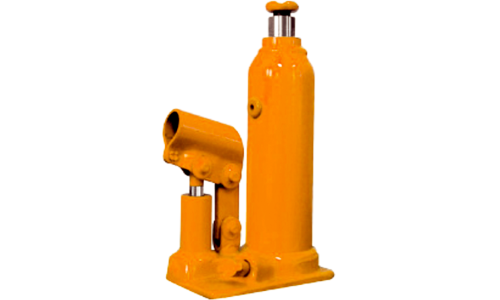

Model Stroke(mm) Screw(mm) Retracted(mm) Extended(mm)
TL3205 132 mm 82 mm 197 mm 410 mm

Hydraulic Jacks comply to CE / ANSI / PALD standards and tonnage ratings. Australian / NZ standards are pending at time of print.

Industrial series jacks feature in-line design making it more convenient to be positioned and operated. Welded base and cylinders to ensure strength and eliminate leaks. Chrome plated pump piston and ram for added rust resistance. Fitted with safety valves to protect overloading.

They can be used vertically, horizontally or at any angle for application versatility. Jacks feature fewer working parts, internally machined oil passages, extremely smooth bearing surfaces, and close tolerances to ensure trouble free service and long life. Extension screw gives added height when necessary.

Meets ANSI / ASME PALD standards and CE / GS standards.

Hydraulic Bottle Jacks (Available Separately):

Model Stroke(mm) Screw(mm) Retracted(mm) Extended(mm)
TL3202 117mm 64mm 178mm 353mm
TL3203 110mm 70mm 190mm 365mm
TL3205 132mm 82mm 197mm 410mm
TL3208 123mm 85mm 200mm 399mm
TL3312 95mm 85mm 175mm 180mm
TL3320 89mm 50mm 180mm 305mm
TL3420 190mm N/A 270mm 440mm
TL3230 165mm N/A 280mm 450mm
TL3235 158mm N/A 280mm 438mm
PJ250 178mm N/A 300mm 473mm
Barcode # 9322159632057
