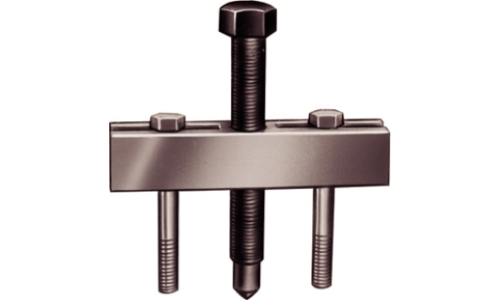

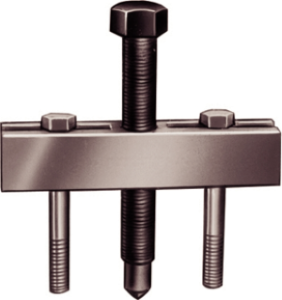

This versatile puller can be used with small bearing separators. It is also designed for removing timing gears, fan pulleys and many other parts that have two tapped holes. Mounting bolts supplied.

Cross block is a sturdy 1" (25mm) square and is 4.3/4" (120mm) long.

  • Slot Openings: 3/8" (10mm).
  • Spread: 1.1/2" to 4.1/4" (38 to 108mm).
  • A10060: 3" x 3/8" UNC Bolts (2 required).
  • A24833: 5/8" UNF x 5.1/2" (140mm) Forcing Screw.
Barcode # 9322159110005
Shipping Weight 0.7520kg
Shipping Width 23.500cm
Shipping Height 6.000cm
