No.A1187-P – Hydraulic Brake Lining Shoe Loader (With Air Pump)

The A1187-P Hydraulic Brake Lining Shoe Loader is a powerful and efficient tool designed for professional brake service applications. Actuated by air-hydraulic power, it allows technicians to remove old rivets and install new ones quickly, safely, and securely.

Key Features:

• Air-Hydraulic Operation – Provides strong, consistent pressure with minimal effort.

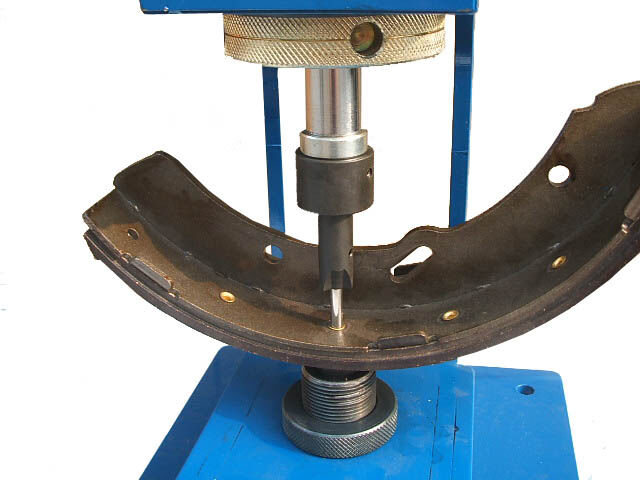

• Efficient Rivet Removal & Installation – Punches out old rivets easily, then sets new rivets using roll head punches for a secure fastening of the lining to the brake shoe.

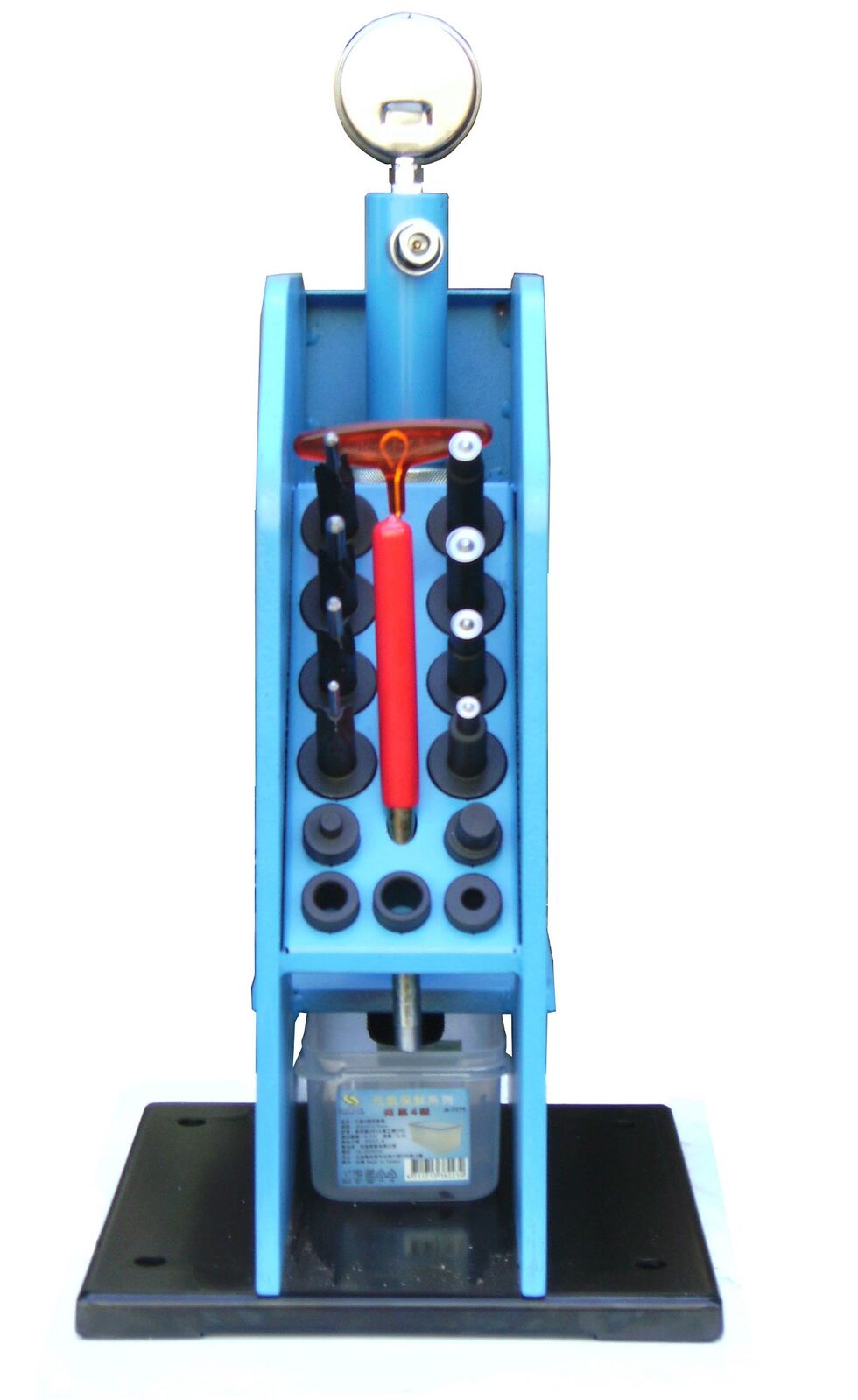

• Interchangeable Heads – Includes:

  • 3 rivet remover punches

  • 3 roll head rivet fastener punches

  • 5 anvils in different diameters to support rivet heads

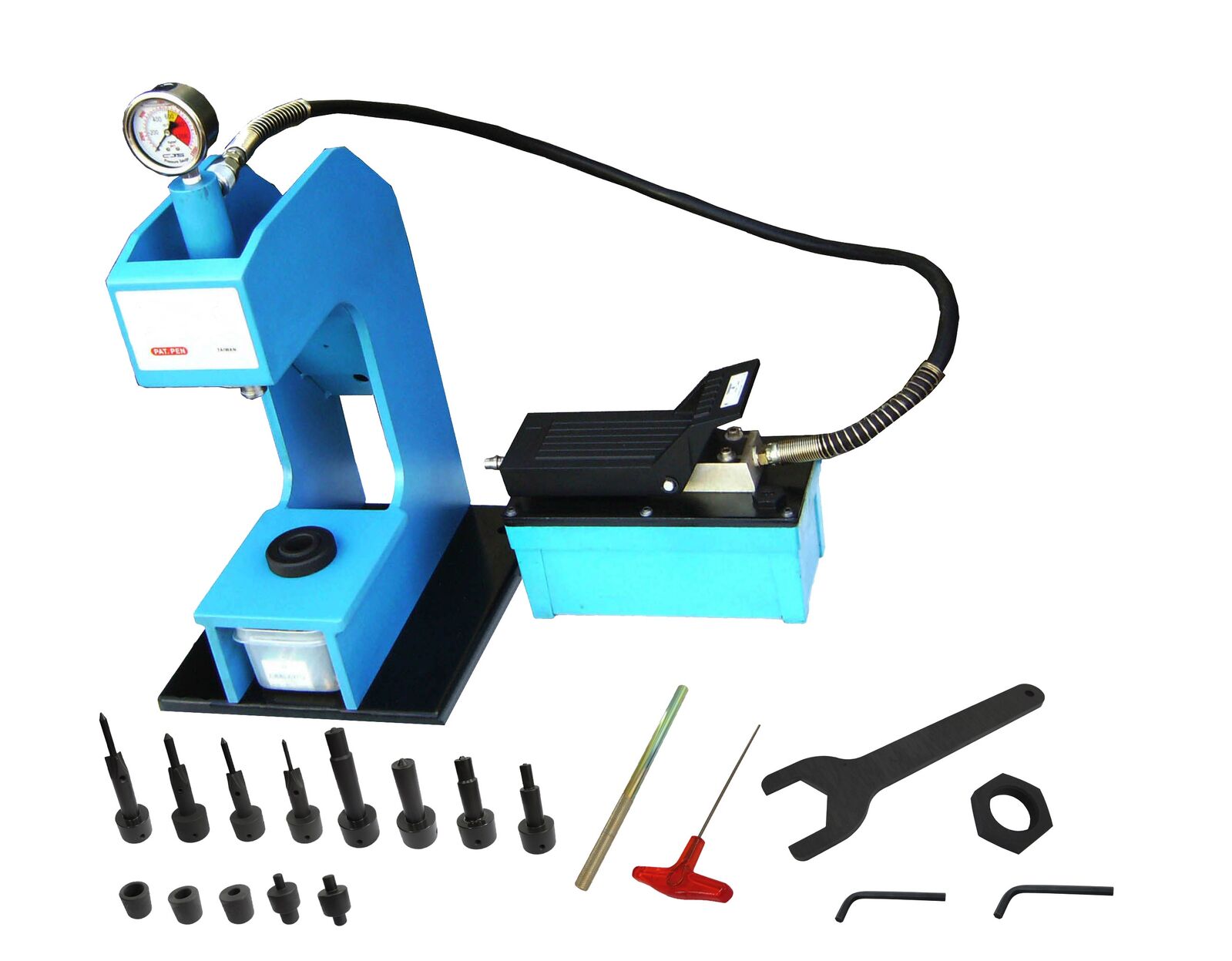

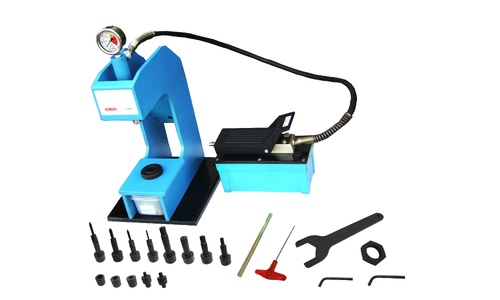

• Complete Setup Included – Supplied with air-hydraulic pump, 6 ft. high-pressure hose, and 3" 10,000 psi pressure gauge.

• Brake Shoe Protection – Designed to safeguard brake shoe steel during operation.

• Heavy-Duty Build – Built for durability and long service life.

Specifications:

• Weight: 60 lbs (27 kg)

• Maximum Capacity: 600 kg

• Maximum Pressure: 8,500 psi

• Supplied Hose Length: 6 ft (high-pressure)

• Gauge: 3" / 10,000 psi

Advantages:

• Quick and easy operation compared to manual riveting.

• Provides firm, secure fastening superior to traditional riveters.

• Reduces operator fatigue with pneumatic assistance.

Packaging & Shipping Dimensions (2 Boxes Total):

• Box 1 (Main Unit): 53 cm (L) x 40 cm (W) x 17 cm (H) | Weight: 33 kg

• Box 2 (Pump & Accessories): 44 cm (L) x 20 cm (W) x 27 cm (H) | Weight: 9 kg

Replacements Available:

• A1187-9 6mm Extra Long Rivet Remover.
• A1187-10 4mm Rivet Remover.
• A1187-11 6mm Rivet Remover.
• A1187-12 8mm Rivet Remover.
• A1187-13 7mm Roll Head Rivetter.
• A1187-14 9mm Roll Head Rivetter.
• A1187-15 11mm Roll Head Rivetter.
• A1187-16 5 Piece Anvil Set.
• A1187-17 6mm Extra Long Roll Head Rivetter
