No.4432N – Universal Oil Pressure Tester Kit

A professional-grade kit designed for quick and accurate diagnosis of engine oil pressure issues. Ideal for both automotive and light commercial applications, this tester can also be used for checking oil pressure in automatic transmissions.

Key Features:

  • Versatile Application:
    Suitable for testing engine oil pressure and automatic transmission pressure. Supplied with 10 different adaptors to suit a wide range of vehicles, including both metric and imperial thread sizes.

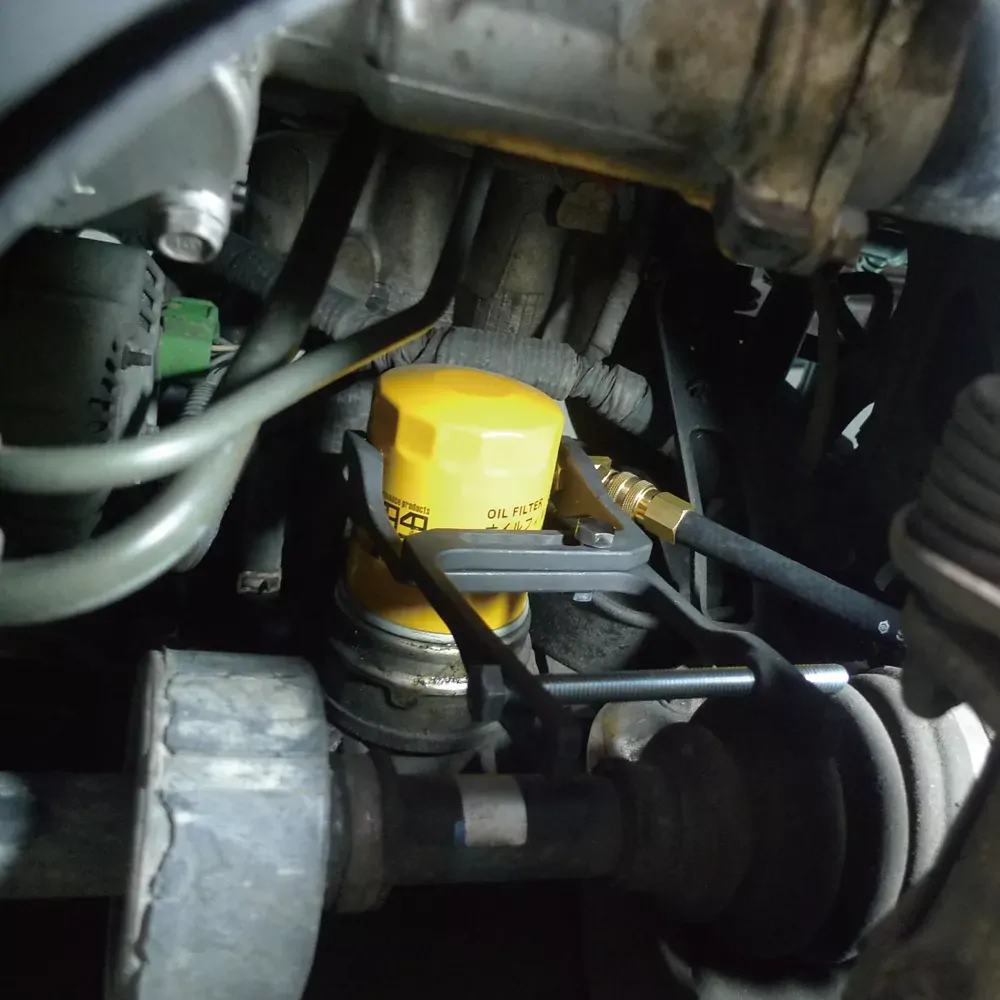

  • Innovative Oil Filter Clamp:

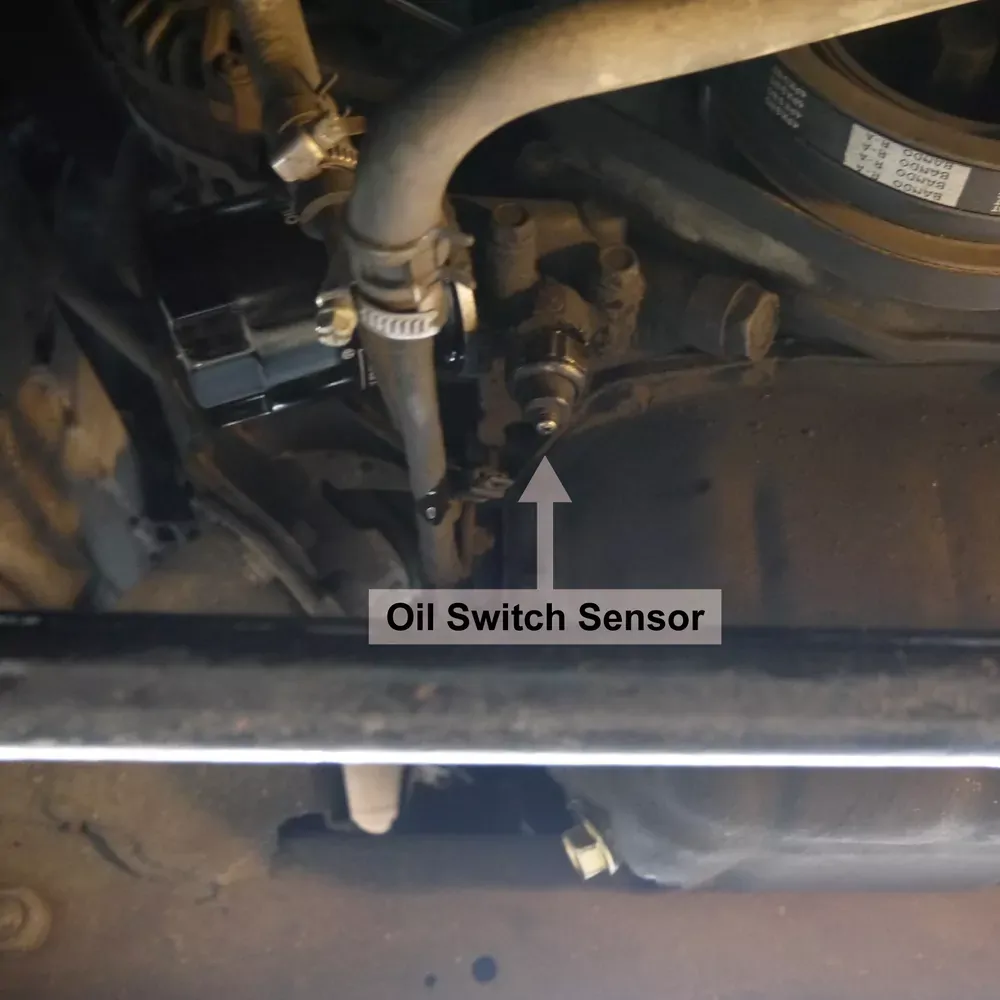

    Includes a unique test clamp adaptor that pierces directly into the oil filter canister, allowing pressure checks without removing the oil pressure switch. Ideal for hard-to-reach areas, saving time and simplifying testing.

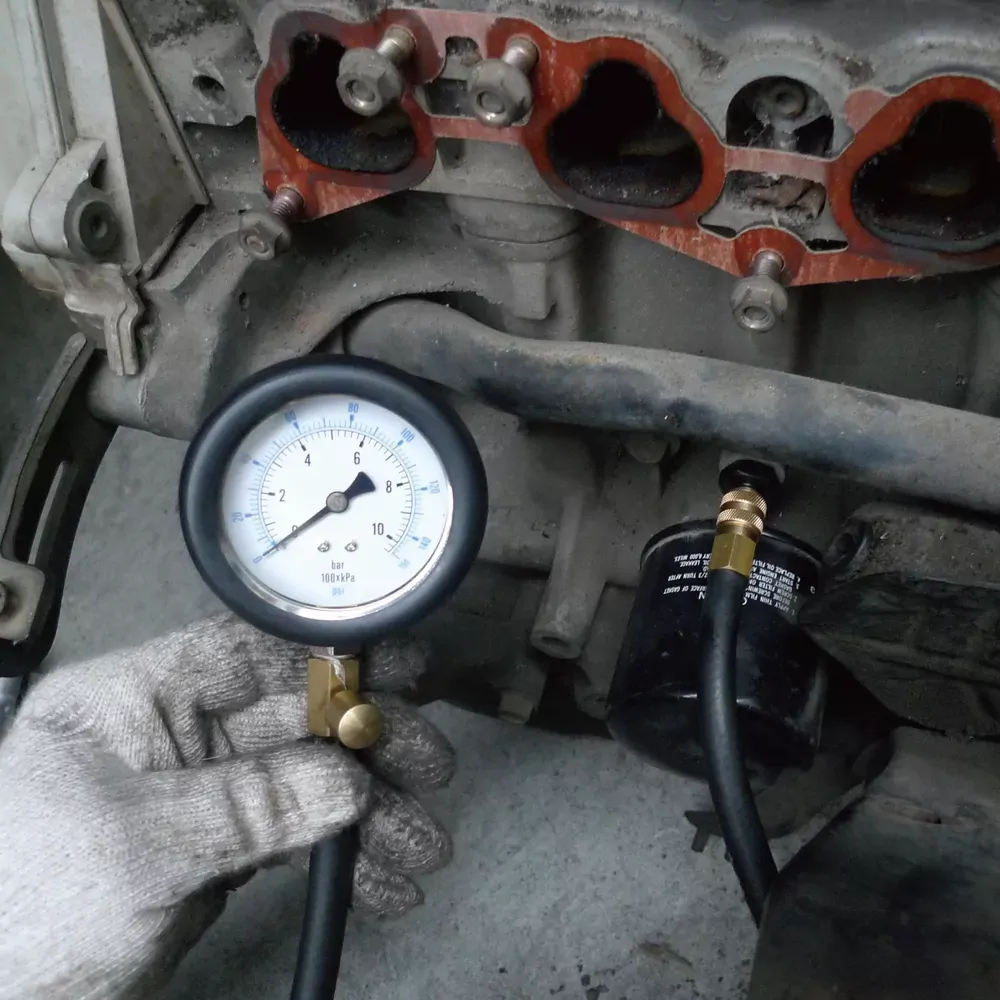

  • High-Quality Pressure Gauge:
    Equipped with a 60mm diameter gauge displaying readings from 0 to 150 psi (0–10.5 bar) for clear and accurate measurement.

  • Extended Reach Hose:
    Supplied with a 1.5-metre pressure hose (59") with both straight and 90° couplers to accommodate tight or awkward engine bays.

Kit Includes:

  • Pressure Gauge: 60mm diameter, range 0–150 psi (10.5 bar)

  • Adaptors:
    • 1/2" x 20 UNF
    • 3/8" x 20 UNF
    • 1/4" x 18 NPT
    • 1/8" x 27 NPT
    • 1/8" x 28 BSP
    • 10mm x 1.0P
    • 12mm x 1.5P
    • 14mm x 1.5P
    • 16mm x 1.5P
    • 18mm x 1.5P

  • Quick-Test Clamp for direct oil filter connection

  • 1.5-metre (59") flexible pressure hose with straight and angled couplers

Barcode # 9322159944327
Shipping Width 29.000cm
Shipping Length 45.000cm
Shipping Height 5.000cm
Shipping Weight 2.0450kg
