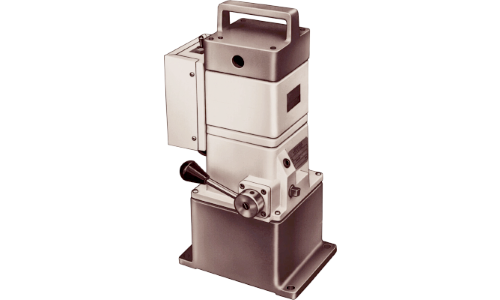

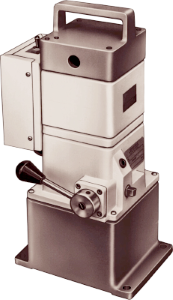

Large volume and high capacity oil flow hydraulic pumps for use on large or multiple cylinders, rams, heavy duty presses ect. They feature two stage pumping, units consisting of gear pump for the lower pressure stage and an axial-piston pump for the high pressure stage.

Two Stage Air & Electric Hydraulic Pumps:

Item No Speed Oil Delivery Cubic Inch / Minute Reservoir Capacity Power Control Valve Weight
2-4044 3450rpm 290 @ 0psi 240 @ 100psi 17 @ 10,000psi 8650cc (7600cc Usable) 240 Volt 2 Position 3 Way 26kg
2-4031 12,000rpm 170 @ 100psi 25 @ 5000psi 18 @ 10,000psi 2275cc (1930cc Usable) 240 Volt 2 Position 3 Way 16kg
2-4065 12,000rpm 650 @ 100psi 70 @ 5000psi 55 @ 10,000psi 9100cc (7630cc Usable) 240 Volt 2 Position 3 Way 34kg
2-4045 40 - 120psi 290 @ 0psi 240 @ 100psi 17 @ 10,000psi 9100cc (7630cc Usable) Pneumatic 2 Position 3 Way 19kg
Barcode # 9322159440317
