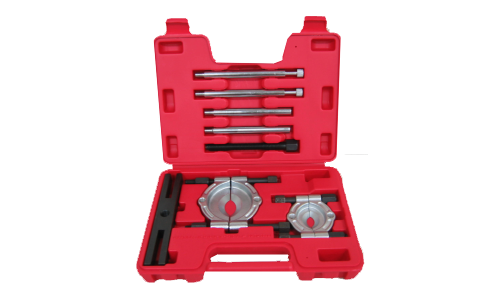

This new universal bearing separator and cross beam set has extendable extension legs to reach around long shafts.



The two bearing splitters with the wide cross beam and four leg extensions allows for many applications on motorcycle and all smaller crank and bearing pulling jobs.

Suitable for motorcycle crank bearings.

  • Bearing Separator Between Bolts: 60mm; Maximum Opening: 55mm.
  • Bearing Separator Between Bolts: 85mm; Maximum Opening: 95mm.
  • Cross Bock Minimum Spread: 58mm; Maximum Spread: 168mm.
  • Slot Opening: 10mm.
  • Two Main Pulling Legs Length: 160mm; Diameter: 13mm.
  • Two Extension Legs Length: 130mm; Diameter: 13mm.
  • Forcing Screw Length: 160mm; Diameter: 13mm.
Barcode # 9322159049657
Shipping Width 20.500cm
Shipping Length 27.500cm
Shipping Height 5.500cm
Shipping Weight 2.4900kg
