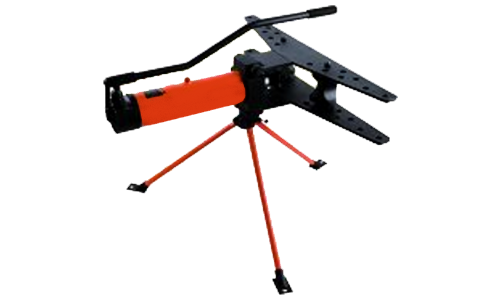

Pipe bending jobs can be done without physical effort due to high 9 ton force of the hydraulic power unit. "V" Shape frames show the 90° angle reference to reduce hydraulic stroke and save bending time.

The unit is fitted with retractable bending frames that are identically marked to facilitate easier positioning of the bending supports and pipe. Unit has safety overload, hydraulic stroke limitation and spring return piston. Supplied in wooden case & includes the tripod stand.

  • Maximum bending angle: 90°
  • Maximum pipe wall thickness: 5.08mm
  • Load Capacity: 9 Ton
  • Weight: 115Lb (52.2kg)

Six pipe formers are included:

Sizes TL3802-12 TL3802-34 TL3802-1 TL3802-114 TL3802-112 TL3802-2
1/2" 3/4" 1" 1.1/4" 1.1/2" 2"
Barcode # 9322159638028
