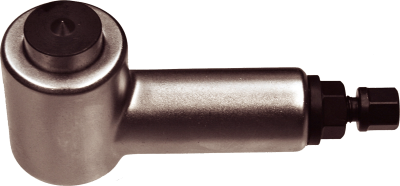

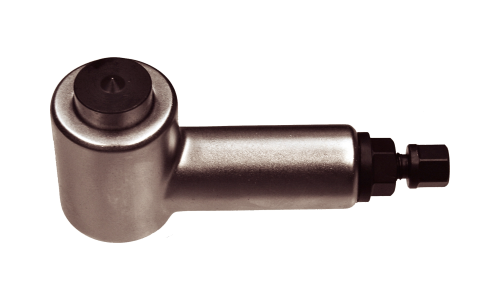

These short and compact Hydraulic Grease Operated Hydraulic Rams are used in conjunction with pullers, presses for a variety of lifting applications. Hydraulic force is generated through the mechanical screw.

  • Piston Travel: 6mm
  • Shear-Pin Rating: 110Nm
  • Piston Diameter: 24mm
  • Cylinder Diameter: 14mm
  • Length: 130mm
  • Maximum Force: 10Ton
  • Minimum Height: 52mm
  • Maximum Height: 58mm
  • Hexagonal Screw: 13mm
Barcode # 9322159707069
