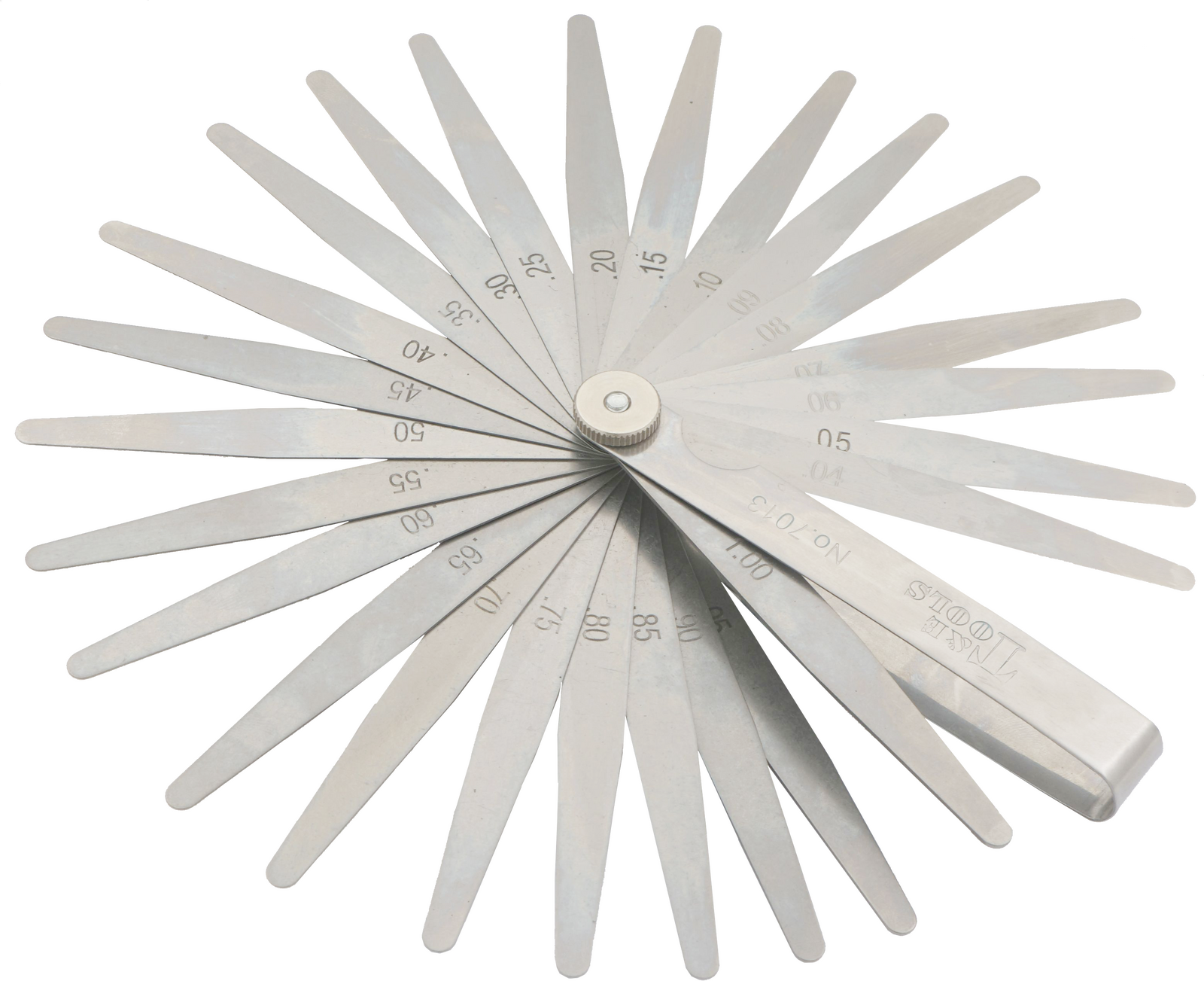

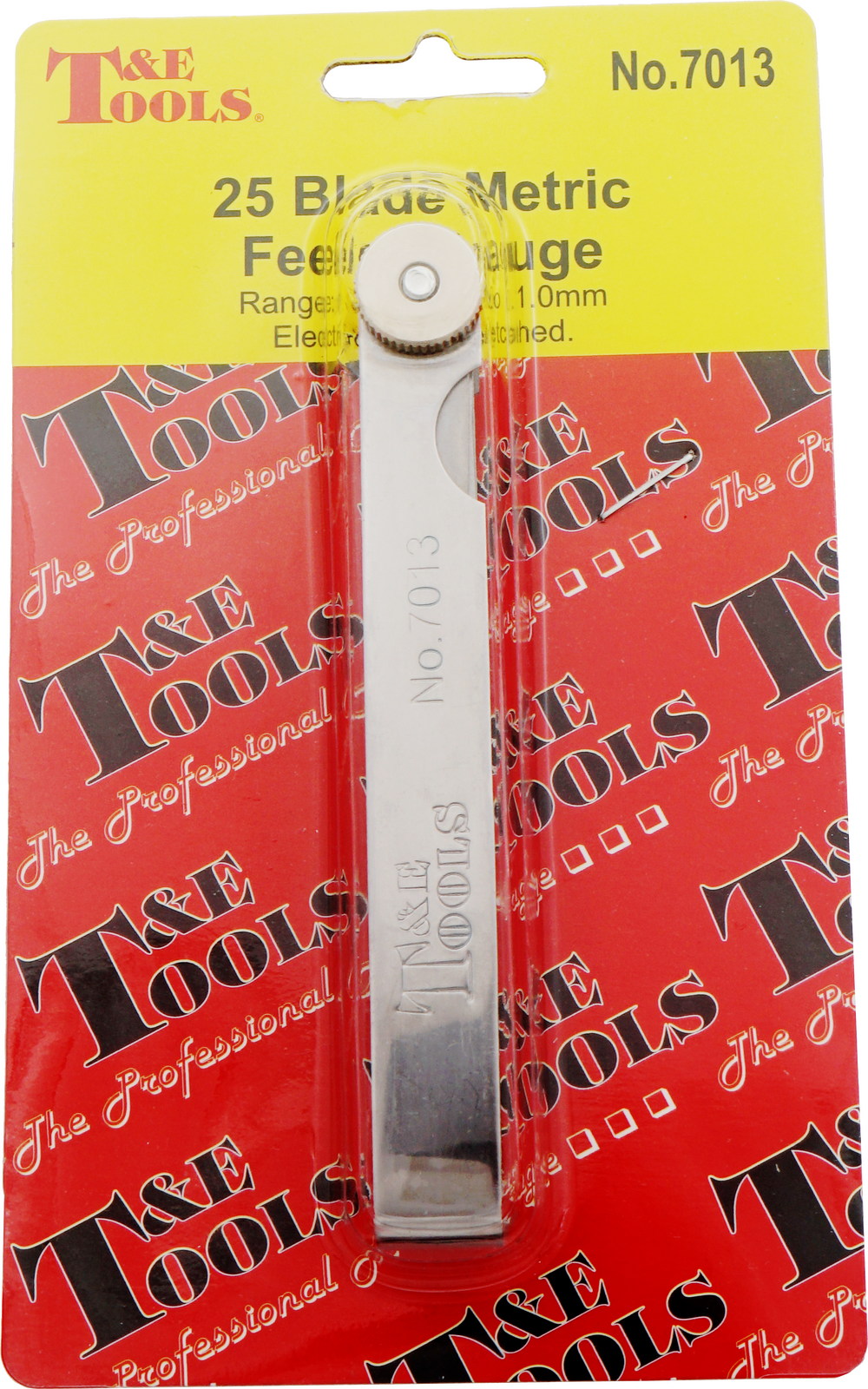

No.7013 - 25 Blade Metric Feeler Gauge

Professional-grade metric feeler gauge designed for accurately measuring small clearances and gaps in automotive, engine and mechanical applications. Ideal for checking valve clearances, engine components and other precision measurements where accurate metric sizing is essential.

Manufactured from high-quality steel, the blades are hardened and tempered to withstand regular workshop use and provide excellent wear resistance. Each blade is precision-finished for reliable measurements and features clearly marked metric thicknesses for easy identification. The knurled locking nut securely holds the blades in position during use.

Features:

  • 25 precision steel blades covering a wide range of metric thicknesses.

  • Hardened and tempered construction for excellent durability and long service life.

  • Clearly marked metric measurements on each blade for quick identification.

  • Knurled locking nut keeps blades securely in position.

  • Compact fold-out design for convenient storage and portability.

  • Ideal for valve clearance checks, engine servicing and general mechanical measurements.

Specifications:

  • Number of Blades: 25

  • Blade Size: 85 x 13mm (3-5/16" x 1/2")

  • Overall Length: 90mm (3-5/8")

  • Measurement: Metric

  • Thickness Range: 0.04mm – 1.00mm

Blade Thicknesses:

0.04, 0.05, 0.06, 0.07, 0.08, 0.09, 0.10, 0.15, 0.20, 0.25, 0.30, 0.35, 0.40, 0.45, 0.50, 0.55, 0.60, 0.65, 0.70, 0.75, 0.80, 0.85, 0.90, 0.95 and 1.00mm.

Barcode # 9322159077551
Shipping Width 9cm
Shipping Length 15cm
Shipping Height 2.2cm
Shipping Weight 0.1100kg
WL: A2006C2301
