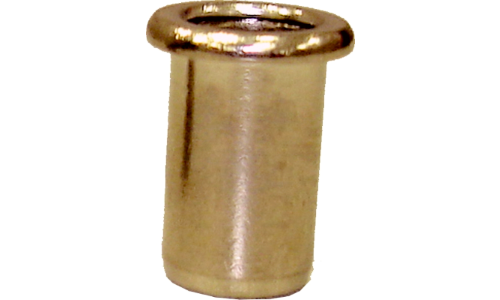

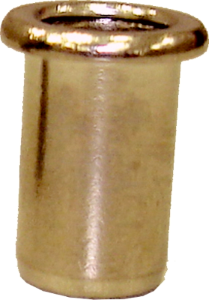

Metric Flat Head PA Series Cold Forming with Heat Treatment. Aluminium Alloy 5056 / A1Mg5.

ISO Metric Size PA Series Flat Head Open End Type Aluminium Alloy 5056 / A1Mg5

Item No. Thread size Grip Range Drill Size Diameter Length Head Size Head Thickness Quantity
PA315 3 x 0.5mm 0.25 to 1.5mm 5.1mm 5.0mm 9.0mm 8.0mm 0.8mm 20
PA425 4 x 0.7mm 0.5 to 2.5mm 6.1mm 6.0mm 10.5mm 9.0mm 0.8mm 20
PA525 5 x 0.8mm 0.5 to 2.5mm 7.1mm 7.0mm 11.5mm 10.0mm 1.0mm 20
PA630 6 x 1.0mm 0.5 to 3.0mm 9.1mm 9.0mm 14.7mm 12.5mm 1.5mm 20
Barcode # 9322159826142
