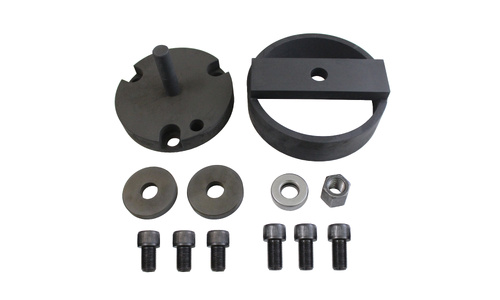

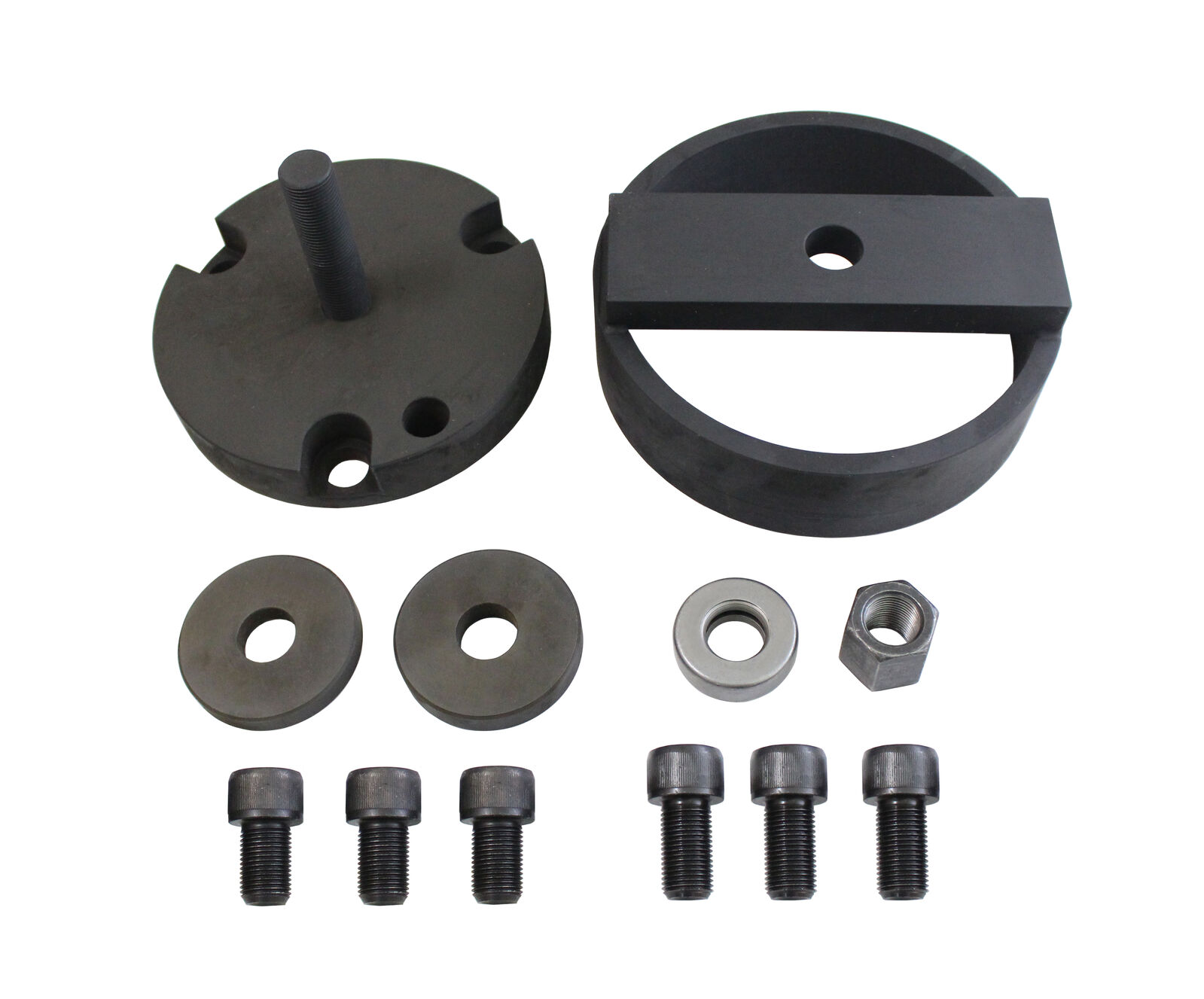

No.A9165 – MACK Rear Crankshaft Seal & Wear Sleeve Installer

The A9165 MACK Rear Crankshaft Seal & Wear Sleeve Installer is a heavy-duty master service tool engineered for the precise, damage-free installation of the rear crankshaft oil seal and wear sleeve together on Mack heavy-duty diesel engines. Designed to match factory workshop specifications, this tool ensures replacement seals and wear rings are pressed simultaneously to the exact factory depth without distorting the casing or damaging delicate seal lips.

Key Product Features

• Simultaneous Seal & Wear Ring Installation: Specifically designed to press the oil seal and wear sleeve together in one operation, ensuring proper depth and eliminating oil leaks.

• Positive Stop Alignment: Features an engineered positive stop mechanism to prevent over-pressing or cocking the seal in the housing bore.

• OEM-Equivalent Tooling: Built to match the exact form, fit, and function of factory original tool OEM J-37716-B.

• Heavy-Duty Commercial Grade: Machined from high-strength carbon steel with a durable corrosion-resistant finish to withstand demanding fleet workshop conditions.

• Teflon (PTFE) Seal Safe: Ensures safe installation of dry Teflon lip seals without causing tears, rolling, or lip distortion.

Usage & Installation Notes

• Do Not Lubricate: When installing Teflon (PTFE) seals, ensure the seal lips and contact surfaces remain completely dry—do not lubricate Teflon seal lips.

• Pre-Assembled Design: Oversize inside diameter lip seals and wear rings are shipped pre-assembled; do not separate them prior to assembly.

• Orientation: Install seals with the yellow lip facing outward towards the transmission.

• Operation: Secure the installation tool plate to the crankshaft using the 3 guide pins, assemble the press cup and driver hex, and torque the hex nut down until the positive stop is reached, then verify final depth.

Specifications & Compatibility

• OEM Reference: J-37716-B

• Applicable Engine Applications:

  • Mack E-6

  • Mack E-7

  • Mack E-7 ETECH

Compatible Seal Part Numbers:

• Mack OEM Seals: 25500973, 20705740, 20705209, 20705626, 20706534, 25624093, 41035000811075, 41035000823052, 446GC250, 446GC251, 446GC310P10, 446GC310P6, 446GC310P7, 446GC311, 446GC311A, 446GC311B, 446GC312

• National / Federal-Mogul Seals: 39807, 2297, 2297S, 5231
