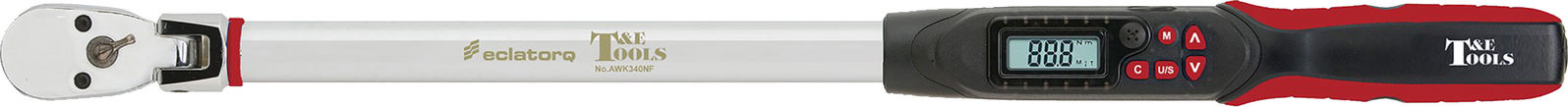

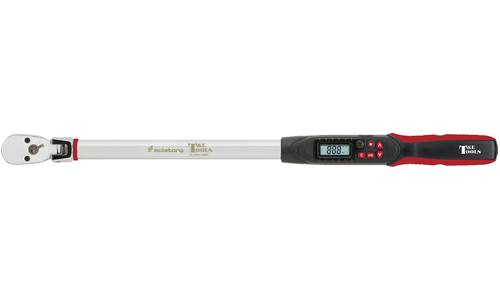

The T&E Tools Digital Flex-Head Torque Wrench combines high-precision torque measurement with digital angle reading, featuring a Flex-Lever Type Ratchet Head for enhanced access in tight or hard-to-reach spaces.

Comes with comprehensive digital functions including Angle setting, Torque setting, Unit selection, Mode setting, Data storage, Data clear, and Online calibration. This high-value wrench ensures precise control across critical automotive and mechanical applications.

Key Features

  • Flex-Head Ratchet Design: Flexible joint ratchet head allows multi-angle operation to navigate difficult engine bays and tight mechanical clearances.

  • Torque & Angle Functionality: Measures both torque values and rotation angles up to 360°.

  • 12 LED Warning Indicators: Features 12 bright LED indicators (2 Red + 10 Green) alongside an audible alert to indicate target torque approach and limit arrival.

  • 9 Pre-set Target Values: Easily pre-program up to 9 torque targets for rapid repetitive tightening.

  • Dual-Direction Operation: Accurately measures torque in both clockwise (CW) and counter-clockwise (CCW) directions.

  • Multi-Unit Digital LCD Display: Readouts in N-m, ft-lb, in-lb, kg-cm, and angle degrees.

  • 50-Value Data Memory: Stores up to 50 data records for torque and angle measurements.

Specifications

  • Square Drive: 1/2"Dr.

  • Head Type: Flex-Lever Type Ratchet (36 Gear Teeth)

  • Torque & Angle Measuring Range:

    • 17 to 340 N-m

    • 12.5 to 250.7 ft-lb

    • 150 to 3009 in-lb

    • 173 to 3469 kg-cm

    • 1° to 360° Angle

  • Accuracy Guaranteed Range:

    • 68 to 340 N-m

    • 50.1 to 250.7 ft-lb

    • 602 to 3009 in-lb

    • 694 to 3469 kg-cm

  • Torque Accuracy: ±2% Clockwise (CW) / ±3% Counter-Clockwise (CCW)

  • Angle Accuracy: ±2° (rotating 90° at speed of 30°/sec)

  • Resolution: 0.1 N-m / 0.1 ft-lb / 1 in-lb / 1 kg-cm / 1° Angle

  • Operation Modes: Peak Hold / Track

  • LED Warning Lights: 12 LEDs (2 Red + 10 Green)

  • Pre-Set Target Memories: 9 Sets

  • Data Memory Size: 50 Values

  • Alarm Setting Range: 17 to 340 N-m

  • Battery Life: ~110 Hours Continuous Operation

  • Net Weight: 2.4 kg (Includes Blow Mold Storage Case)

Barcode # 9322159723403
