Available End of October 2025

T&E Hi-Performance Extra Long Ring Wrenches are engineered with a deep-offset flat
drive ring design. This geometry provides superior access to confined and recessed
fasteners while significantly increasing the contact surface area on the fastener flank.
The result is a dramatic reduction in slippage and a substantial increase in torque
application, especially on worn or stubborn nuts and bolts.
Increases the greater surface contact area by up to 50% compared to standard
rings, distributing force more evenly and reducing point loading on the fastener.

Forged from 6140 Alloy Steel, which gives high tensile strength,
excellent toughness, and superior resistance to wear and deformation.
This product is designed, tested, and certified to
meet or exceed the requirements of the following
international standards: ANSI/ASME B107.300 & DIN 3113.

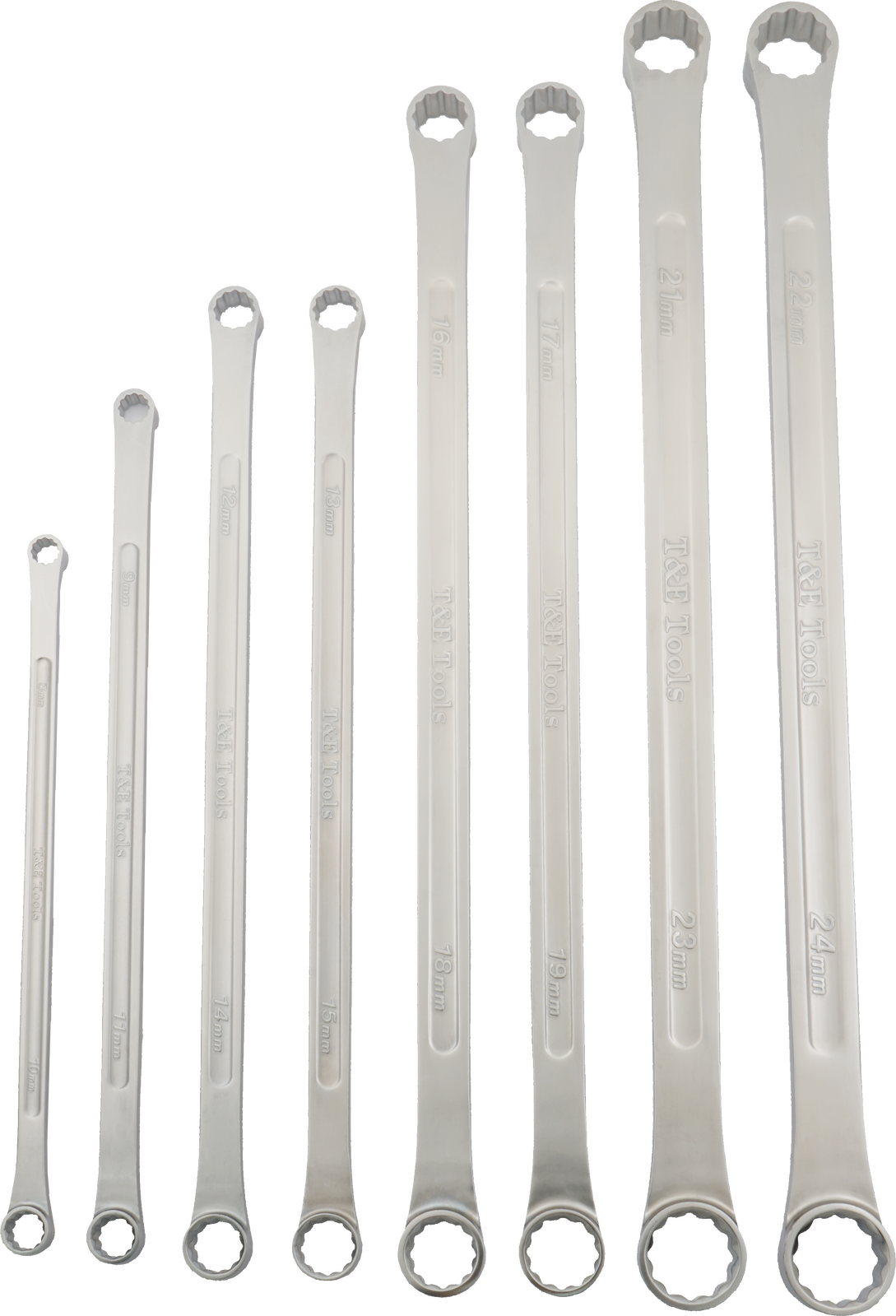

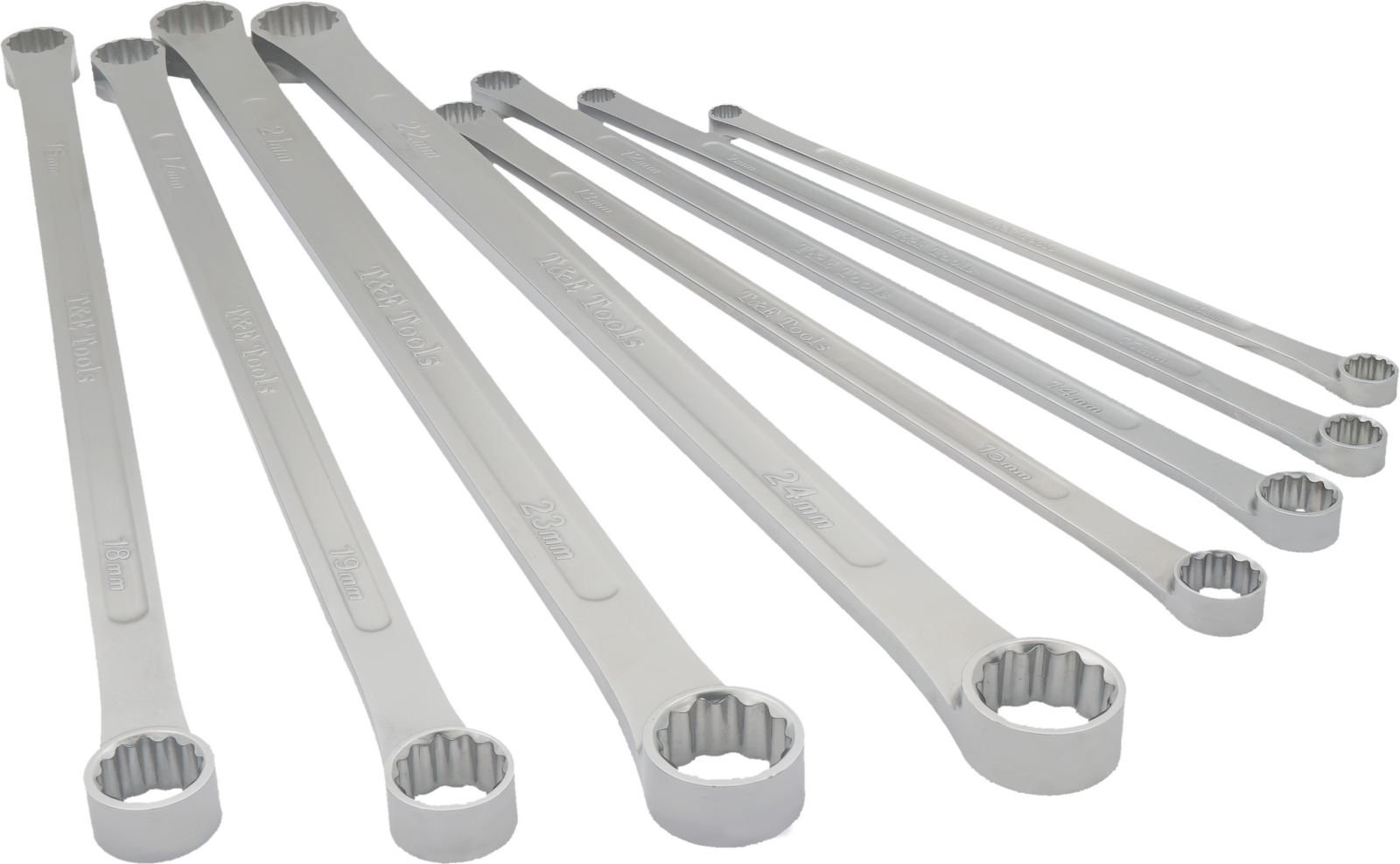

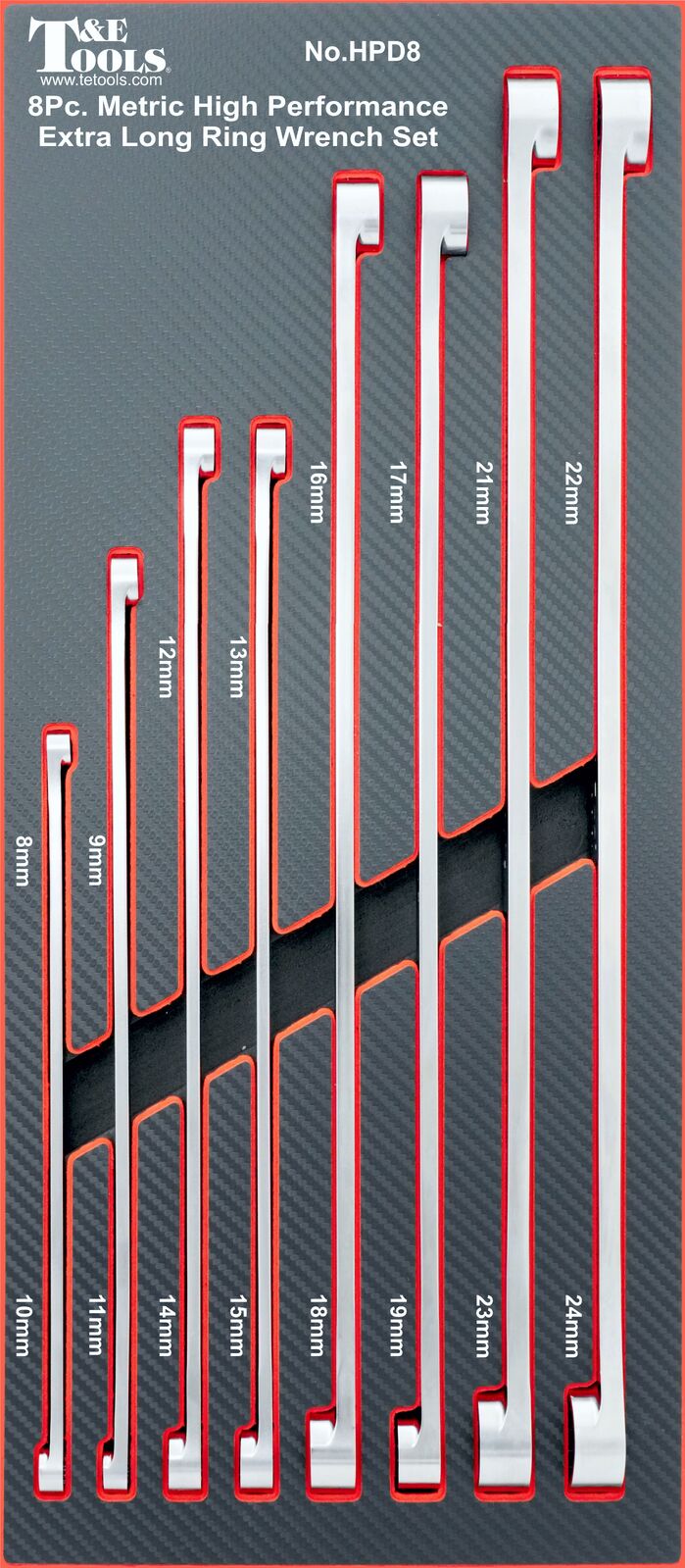

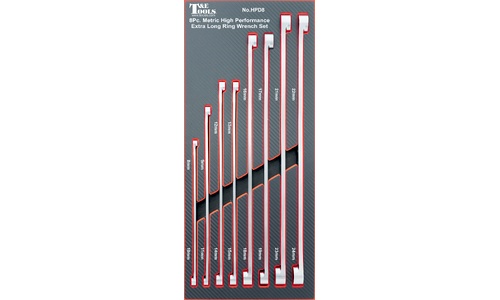

Includes Sizes:
  8 x 10mm,     9 x 11mm,   12 x 14mm,   13 x 15mm,
16 x 18mm,   17 x 19mm,   21 x 23mm,   22 x 24mm.





Item No. Size Opening Length
HPD0810 8 x 10mm 12Pt Long 0° Offset Flat Ring 235mm
HPD0911 9 x 11mm 12Pt Long 0° Offset Flat Ring 290mm
HPD1214 12 x 14mm 12Pt Long 0° Offset Flat Ring 330mm
HPD1315 13 x 15mm 12Pt Long 0° Offset Flat Ring 330mm
HPD1618 16 x 18mm 12Pt Long 0° Offset Flat Ring 405mm
HPD1719 17 x 19mm 12Pt Long 0° Offset Flat Ring 405mm
HPD2123 21 x 23mm 12Pt Long 0° Offset Flat Ring 435mm
HPD2224 22 x 24mm 12Pt Long 0° Offset Flat Ring 435mm
Barcode # 9322159589092
