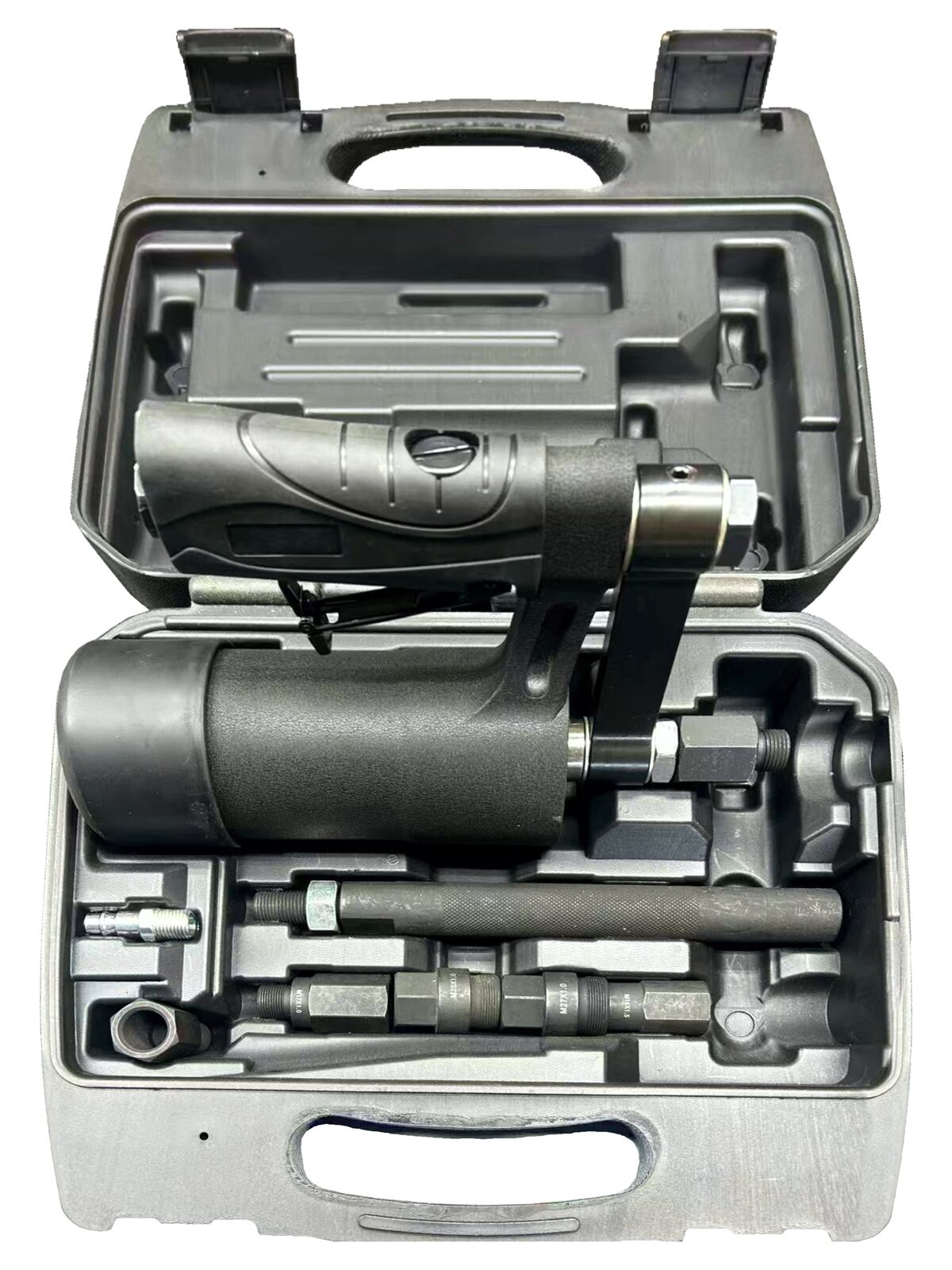

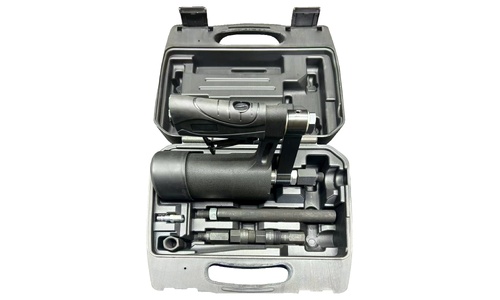

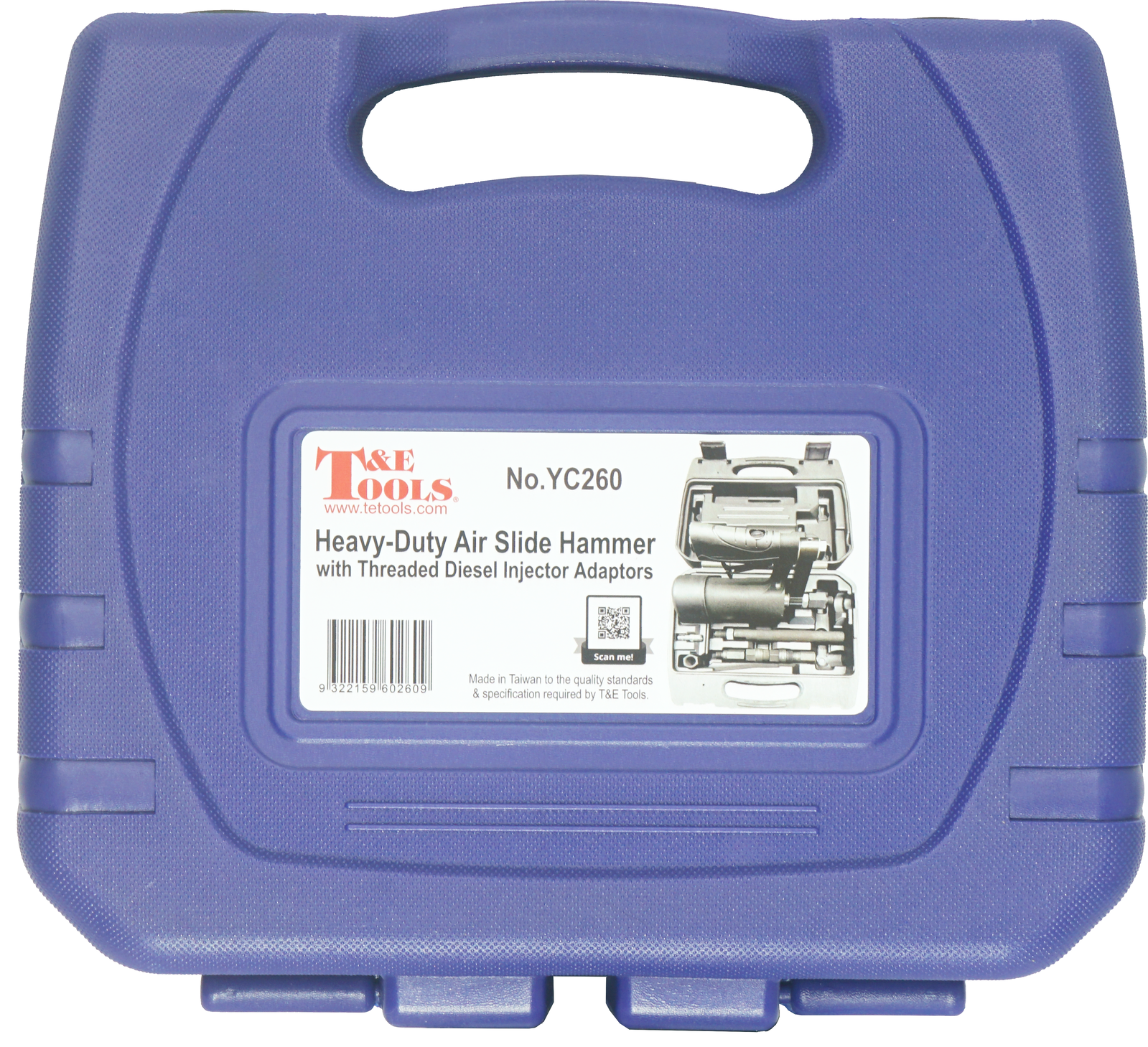

No. YC260 – Heavy Duty Air Slide Hammer with Threaded Adaptor Set

Designed to deliver greater pulling power in a more compact form than traditional slide hammers, the YC260 provides efficient, consistent performance at up to 1,400 BPM (blows per minute) with a simple trigger pull.

It delivers pulling force equivalent to a 3.5–4.5 lb manual slide hammer for heavy-duty applications and 4.5–6 lb for lighter tasks.

The standard 5/8"-18 thread is compatible with a wide range of attachments, making it suitable for applications from bearing removal to collision repair. The threaded extension rod and spindle allow for extended reach or a more compact setup in tight spaces.

Includes 5 Diesel Injector Adaptors for Delphi, Bosch, Denso and Siemens applications, providing added versatility for diesel injector removal work.

The lever throttle allows precise control of speed and pulling force, while the recommended hi-flow air fittings help support optimal performance.

Tool Specifications

• BPM: 1,400 @ 90 PSI

• Air inlet: 1/4"

• Average air consumption: 25 SCFM / 3.8 CFM

• Stroke: 35 mm

• Pulling capacity: 250 ft-lb

• Spindle: M18 x 1.5P / 3/8" x 18P

• Standard thread: 5/8" x 18

Full Set Includes

• Spindle: M18 x 1.5P

• Extension rod: 5/8" x 18P x 230 mm

• 5 Diesel Injector Adaptors:

  • M14 x 1.5 – Delphi

  • M17 x 1.0 – Bosch

  • M20 x 1.0 – Denso

  • M25 x 1.0 – Siemens

  • M27 x 1.0 – Siemens

Country of Origin: Taiwan
