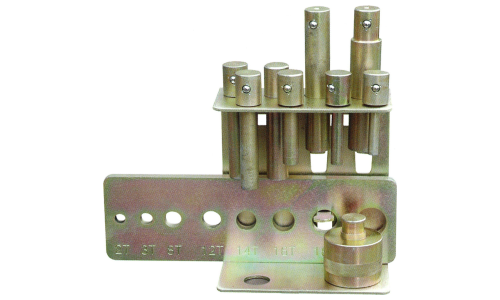

Shop press can be supplied with this eight piece pressing pin set. The pins are stored in a purposely designed tool stand that can fixed to the press frame.

Eight pins supplied sizes as per table in specification tab.

Eight pins supplied sizes as per table:

Capacity Diameter "A" Diameter "B" Length "C"
2 Ton 10mm 25mm 50mm
3 Ton 12mm 25mm 60mm
8 Ton 16mm 25mm 60mm
12 Ton 18mm 25mm 85mm
14 Ton 20mm 25mm 85mm
16 Ton 22mm 25mm 85mm
18 Ton 25mm 25mm 110mm
20 Ton 30mm 25mm 110mm
