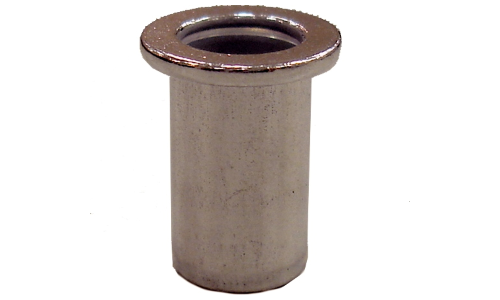

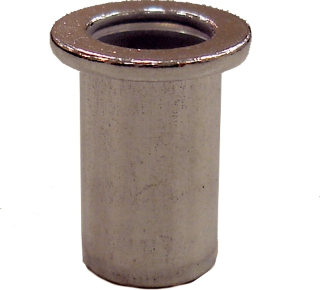

Metric Flat Head PT Series Cold Forming with Heat Treatment.

ISO Metric Size PT Series Flat Head Open End Type Stainless Steel SUS-302HQ

Item No. Thread size Grip Range Drill Size Diameter Length Head Size Head Thickness Quantity
PT320 3 x 0.5mm 0.5 to 2.0mm 5.0mm 4.9mm 9.0mm 8.0mm 0.8mm 20
PT425 4 x 0.7mm 0.5 to 2.5mm 6.0mm 5.9mm 11.0mm 9.0mm 1.0mm 20
PT530 5 x 0.8mm 0.5 to 3.0mm 7.0mm 6.9mm 12.0mm 10.0mm 1.0mm 20
PT630 6 x 1.0mm 0.5 to 3.0mm 9.0mm 8.9mm 14.0mm 12.0mm 1.5mm 20
PT830 8 x 1.25mm 1.0 to 3.0mm 11.0mm 10.9mm 16.0mm 15.0mm 1.5mm 10
PT1035 10 x 1.5mm 1.0 to 3.5mm 13.0mm 12.9mm 19.0mm 17.0mm 2.0mm 10
Barcode # 9322159826357
